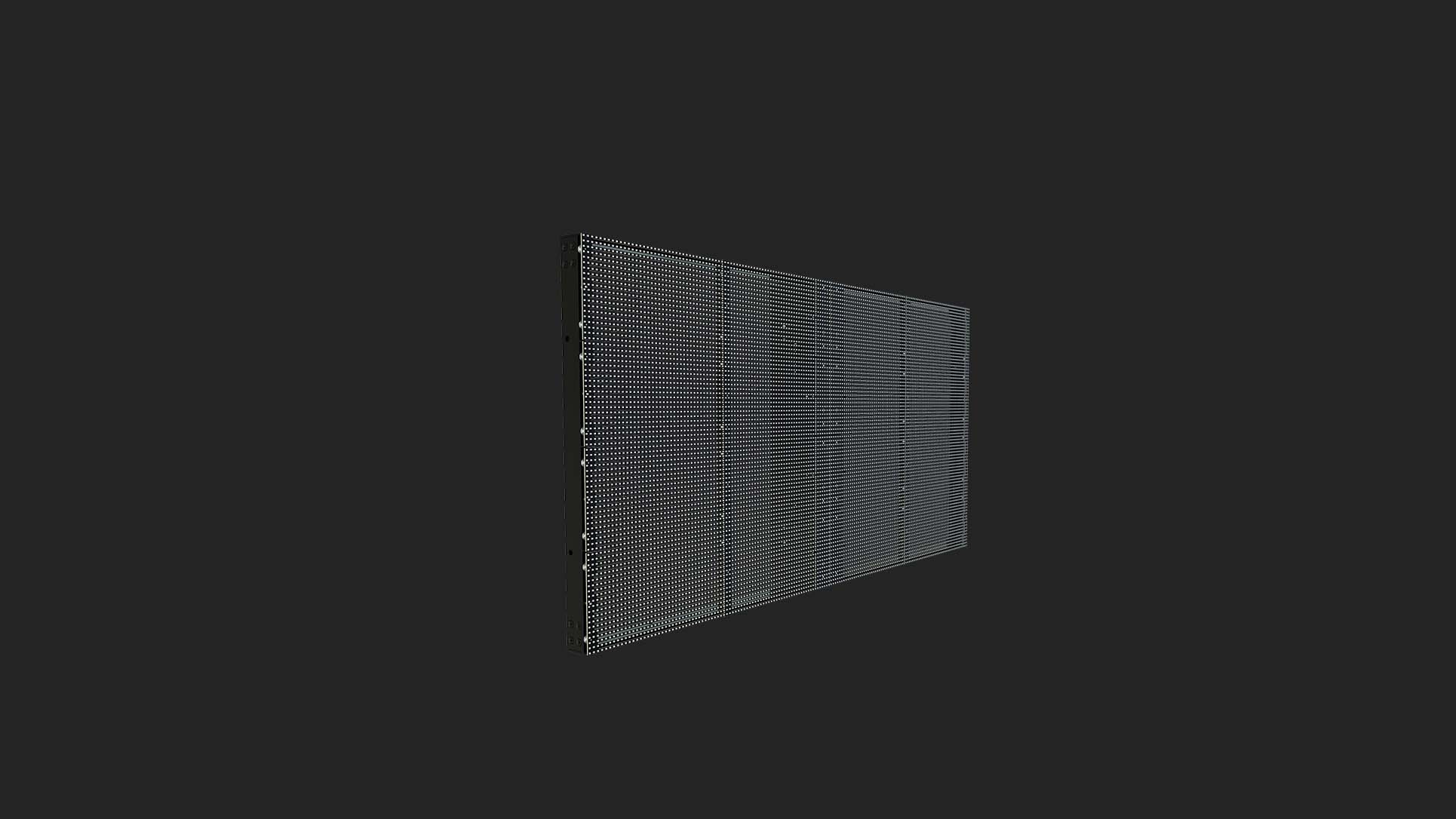

CLRVision
Clear, creative impact.
Indoor transparent mesh technology delivered in fine pitches for high-impact visuals.
High Brightness
3000+ nit brightness elevates your creativity and messaging to be visible in demanding spaces.
Variable Transparency
Transparent mesh technology delivered in a wide range of pixel pitches from 3.8 - 10mm, allows your display to have clarity and high resolution for up close and personal viewing.
Simplistic Service
Each individual LED strip can be easly serviced from the front or rear making service no hassle.
High Quality Components
High quality components ensure that your massive statement is as clear today as in the years to come.
Why CLRVision
Dedicated Professionals
Every Nanolumens installation has a dedicated team to install and manage your systems to ensure every detail is thought of and planned.
Local Customer Support
Go forward with confidence knowing that shall an issue arise, our local support team is available day or night ready to spring into action.
Nixel to Pixel Warranty
Our Warranty coverage starts with pixel one, ensuring your display is covered 100%.
3 - 10mm Pixel Pitch
Front and rear serviceable
3 year extendable warranty
Sleek Tileable Design

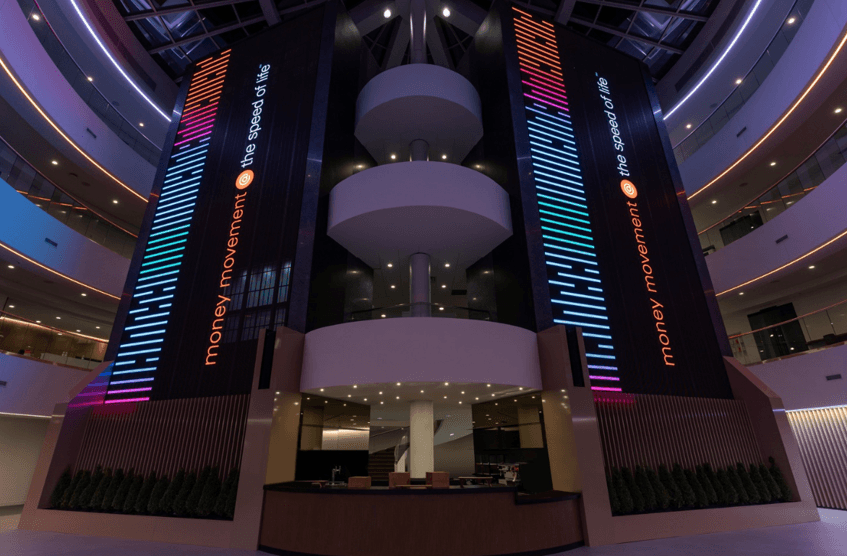

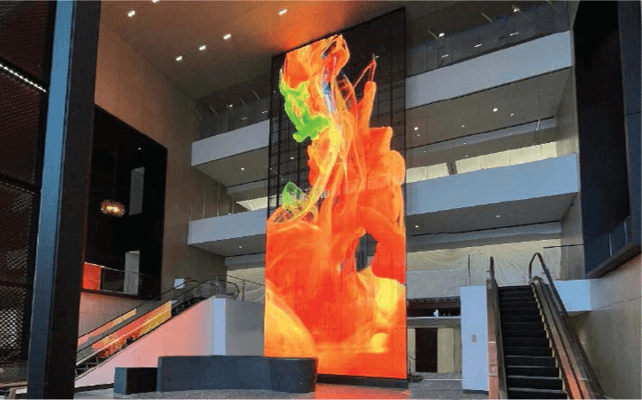

CLRVision Gallery
| Pixel Pitch | 3.9 x 7.8 | 6.2 x 6.2 | 7.8 x 7.8 | 10.4 x 10.4 | ||
|---|---|---|---|---|---|---|
Transparency
| 43% |
32% |
43% |
54% |
| ||
| Unit Size (W X H) | 39.3 x 19.6 in 1,000 x 500 mm |
|||||
| Unit Resolution | 256 x 64 | 160 x 80 | 128 x 64 | 96 x 48 | ||
| Watts/ft^2 | 51.1 Max 15.3 Avg |
51.1 Max 15.3 Avg |
51.1 Max 15.3 Avg |
51.1 Max 15.3 Avg |
Weight/ft^2 | 1.4 kg 3.2 Ibs |
| Max Brightness (standard) | 3,000 nits | 2,000 nits | 2,000 nits | 3,000 nits | ||
| Viewing Angle Max | 160h 140v |
Viewing Angle L50 | 140h 140v |
|||
| Serviceability | Front and Rear | |||||
| Indoor/Outdoor | Indoor Only | |||||
| Input Voltage (VAC) | 110 / 120 / 208 / 220 / 240 VAC – Single Phase | |||||
| Output Bit Depth | 8-bit Standard (16.7 Million) / Up to 10-bit (>1 Billion) | |||||
| Lifetime | >100,000 Hours | |||||
| Warranty | 3 year standard / 6 Year Extended | |||||
